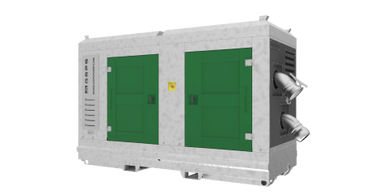

Pump End: GSPS MCL-C6614C
Pump Size: 6x6 inches (150x150 mm)
Max Flow: 2950 US GPM (670 m3/h)
Max Head: 290 feet (89 m)
Solids Size: 3 inches (76 mm)
Mechanical Seal: Single mechanical seal 2.5”
Lip Seals: CR type, single lip, Buna-N (Bearing & SAE Cover) and Viton(Stuffing box)
Non-Drive End Bearing: Single row ball bearing 6316
Drive End Bearing: Duplex angular contact bearing 7316
Air/Water Chamber: Steel material and designed to separate air and water before entering into vacuum pump suction hose.
Discharge Non Return Valve: Swing type, cast iron with Buna-N disc (Viton optional)
Gasket: Aramid Fiber w/ EPDM
O Ring: Buna-N
Engine Model: DEUTZ TCD4.1L4
Rated Power At Speed: 156HP @ 2300RPM
Engine Type: Water-cooled 4-Cylinder inline engine with turbocharging, charge air cooling and cooled external exhaust gas recirculation.
Displacement: 250 Cu.In. (4.1 Liters)
EPA Tier: Tier 4 Final/Stage V
Fuel Tank: 106 U.S. Gallons (400 Liters)
Full Load Operating Time: 13.8 Hours
Starter: 12 Volts Electric
Control Panel: Murphy, Controls Inc, Deepsea, Kensho, Lofa
Instant-Prime® System
Patent Pending self priming pumps are equipped with the most powerful priming system and P-S-P mechanism. Instant-Prime® pump sets a new benchmark of vacuum assisted priming pumps in the industry.
Vacuum Pump Data*
* at engine speed 2200 RPM
